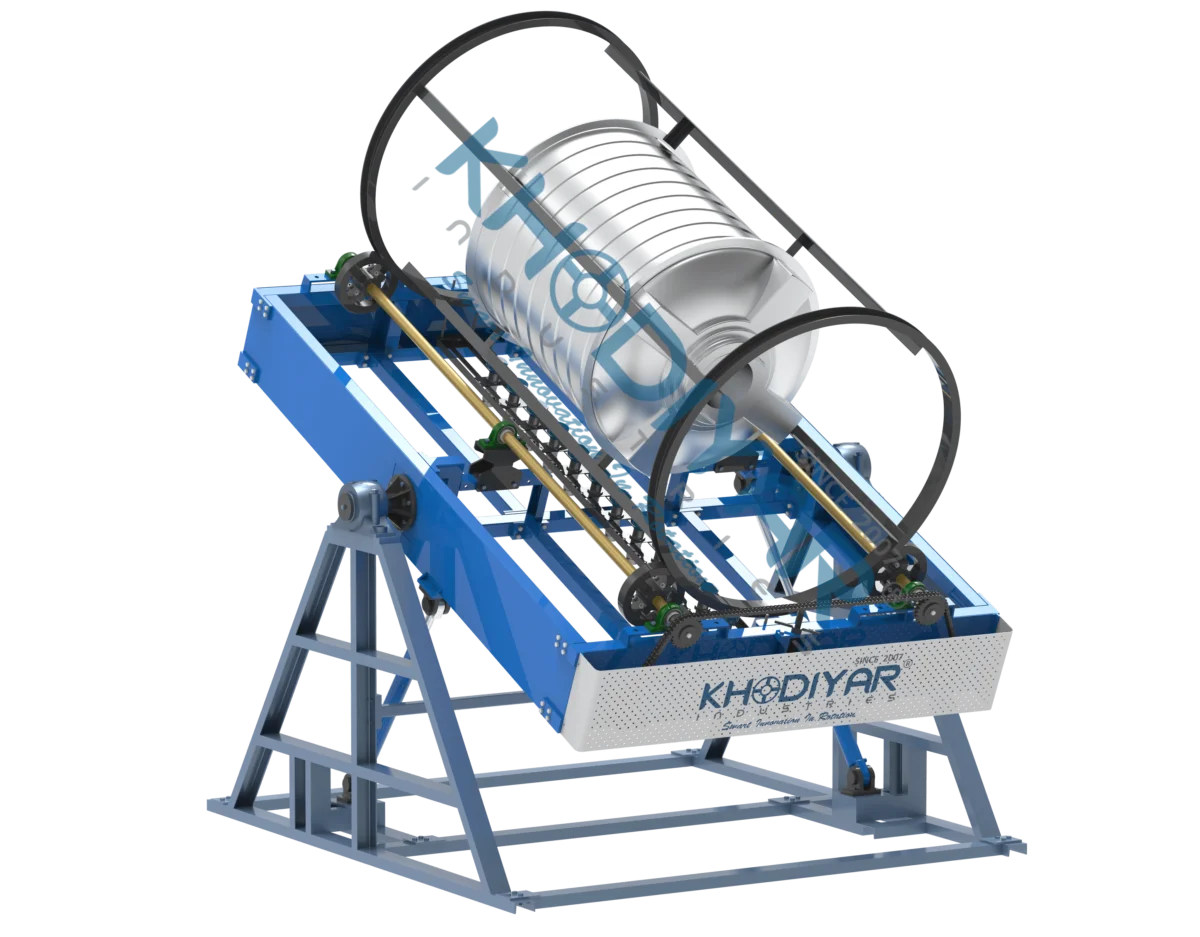

Open Fire Rock N Roll Machine

Open Fire Rock n Roll Machine Manufacturer & Exporter

We are a manufacturer of Open Fire Rock n Roll Machine designed for delivering high heating efficiency and accurate moulding outputs. Specialized for those industries that require strength and consistency, the machine guarantees wall thickness consistently and perfect surface finishing. Its strong design and ease of operation are the reasons it is specially suited for the manufacture of tanks, containers, and other roto-moulded items. We also supply our machines to Amritsar, Ludhiana, Lucknow, Kanpur, Varanasi, Chennai, Coimbatore, Bengaluru, Visakhapatnam, Hyderabad, Thiruvananthapuram, and Kochi. Each system is engineered to perform reliably in demanding industrial environments with low maintenance and a long service life.

As an established open fire rock n roll machine manufacturer and exporter, we focus on responsible innovation, dependability, and ease of use. Our machines are engineered to deliver maximum output with minimal fuel consumption and downtime. As a trusted exporter, we provide high-tech, quality-tested machinery that meets international performance and safety standards, ensuring higher productivity for our global clients.

Brochure

Technical Specifications

The table below highlights the detailed specifications of the Open Fire Rock n Roll Machine, featuring strong construction, efficient burners, and advanced temperature management.

Model	KI-5K	KI-10K	KI-25K	KI-50K
TANK CAPACITY	200 L-5,000 L	500 L-10,000 L	500 L-25,000 L	500 L-40,000 L
TOTAL CONNECTED LOAD	13HP	17HP	27HP	34HP
FRAME SIZE:- LX W (METER)	3.5 X 2.2	5X3	6X4	6.5 X 4.5
PIT SIZE:- LXWXD (METER)	4.5 X 3 X 2.2	6 X 3.5 X 2.8	7 X 4.5 X 3	8X5X4
FUEL	LPG	LPG	LPG	LPG

Products Gallery

Features of Open Fire Rock N Roll Machine

Below are the advanced features of the Open Fire Rock n Roll Machine, built for longevity, performance, and ease of use. With a sturdy frame, optimised power consumption, and a low-maintenance design, it provides consistent production results across a variety of rotomoulding processes.

For Initial Start-up, Most Suitable machine due to its Lower Investment Cost.
Special products like Boats, Kayak, Canoes, Large Diameter Drainage Pipes, Vehicle Bodies, Porta Cabins, Large Capacity Water Tank can be produced on Rock n Roll comfortably.
This machine Can be used for Roto lining for Specially Fittings and other products.
Sturdy Machine suitable for manufacturing large size hollow products. Up to 40000 Itrs / 10000 USG capacity
Hydraulic Power Pack
Low cost, more production for big size hollow product
User Friendly Low pressure outside adjustable individual burners provided for effective heating, low consumption of fuel, trouble free services for long time
Process fully visual and as such very less chances of rejection of products less break down & maintenance
Optional: PLC for Automation
Optional: Microprocessor based machine control panel with digital display
